Configuring Cross-Tenant Azure DevOps Access from ArgoCD on ARO

In some large enterprises, it might be a requirement to have your Azure DevOps (ADO) tools in a centralized Azure Tenant different from the tenant where your cluster resides. It then becomes imperative to configure secure cross-tenant access between your Azure Red Hat OpenShift (ARO) cluster and your ADO.

With Managed Identity-enabled ARO clusters now generally available, we will leverage Workload Identity Federation and a User-Assigned Managed Identity (UAMI) to configure this secure bridge.

Guide Overview

1. Install OpenShift GitOps Operator in ARO
2. Update the Repo-Server ServiceAccount
3. Establish Federated Trust with ADO Tenant
4. Add Tenant B Managed Identity as an entity in ADO
5. Configure ArgoCD to authenticate with ADO
6. Validate our setup by deploying a sample application

Prerequisites

• Tenant A: An ARO cluster with Managed Identity/Workload Identity enabled.
• Tenant B: Azure DevOps Organization with a sample repo and a Resource Group for the Managed Identity.
• Permissions: You must to be a Member of the ADO tenant with Entra Admin permissions to add users in ADO. You also need cluster-admin privileges to deploy operators in ARO.

1. Install the OpenShift GitOps Operator

1. Log into the OpenShift web console with cluster-admin privileges

2. Navigate to Operators > OperatorHub.

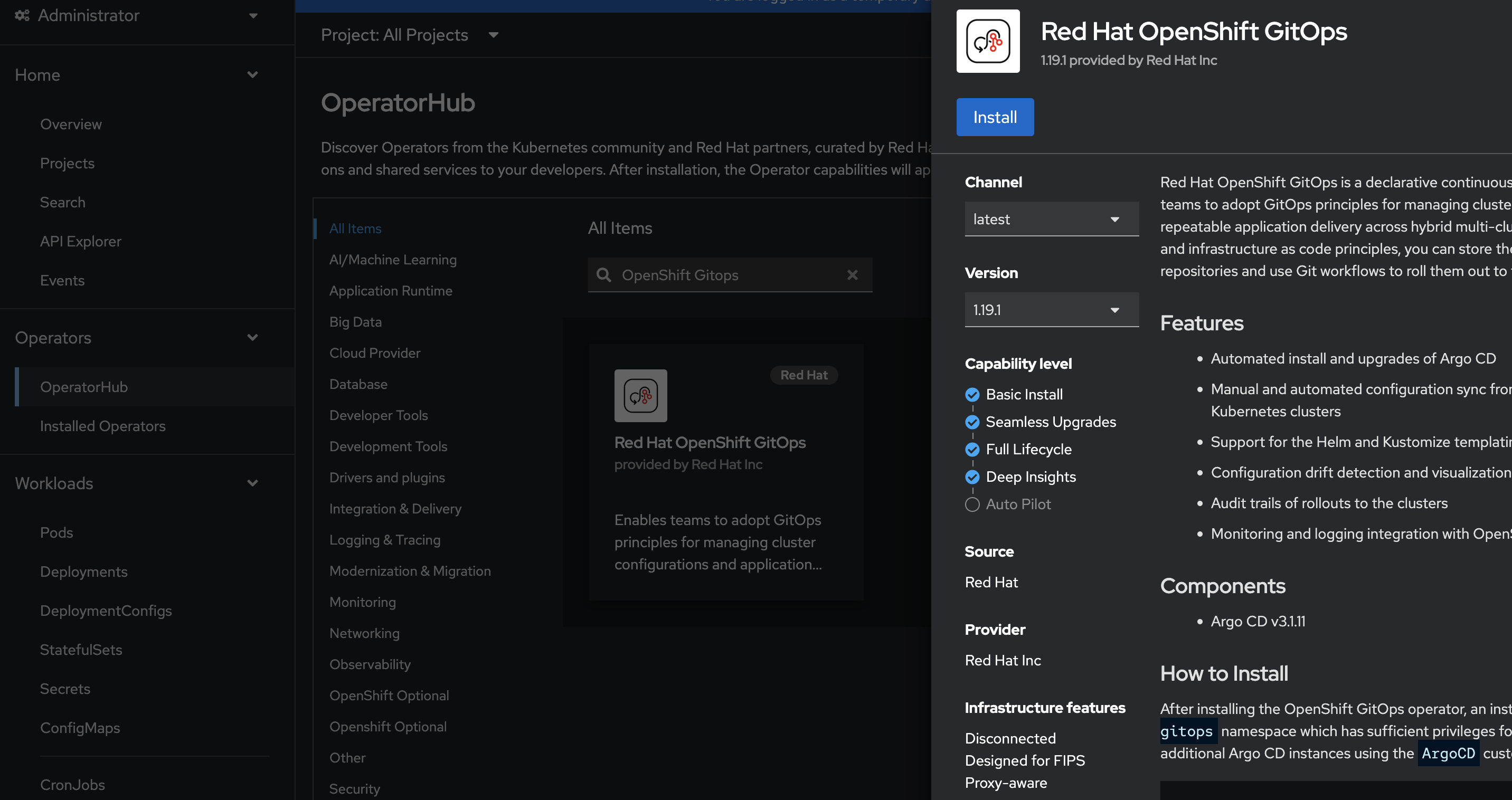

3. Search for Red Hat OpenShift Gitops. Click on the dispalyed Red Hat OpenShift Gitops operator

4. Keep default settings and click Install.



5. On the next screen that comes up, keep all the default entries, scroll to the bottom of the page and click Install.

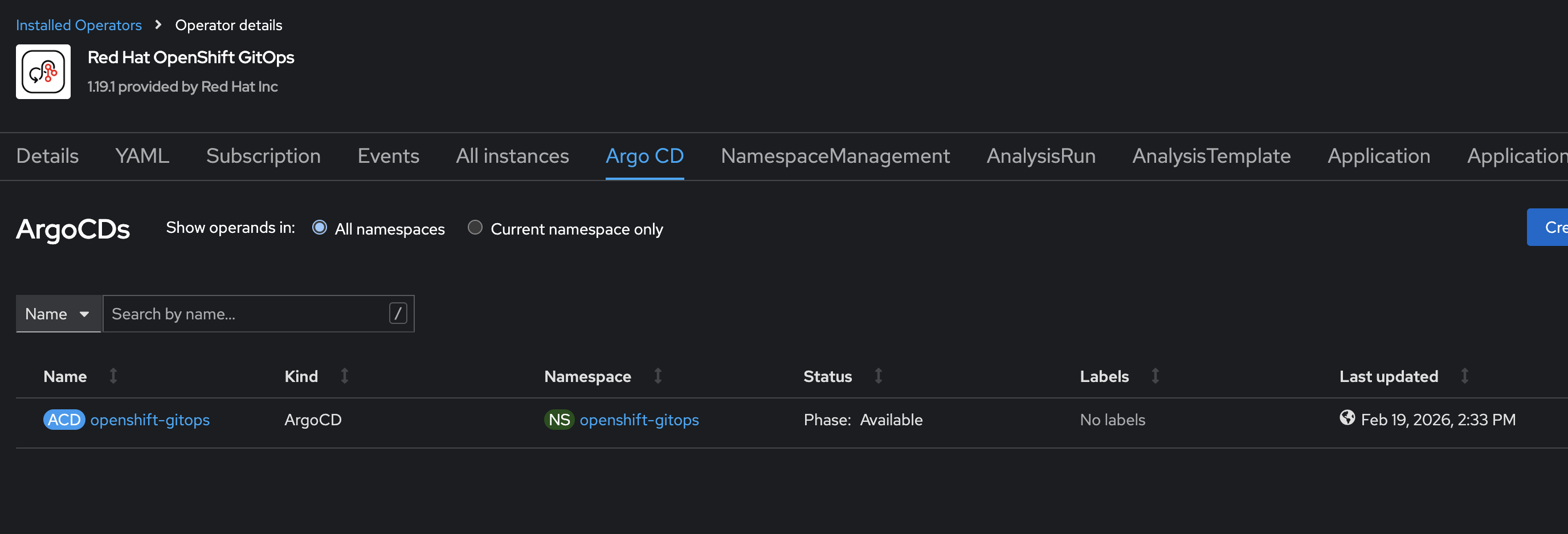

6. Once installed, click View Operator. Look for the Red Hat OpenShift GitOps operator you just installed and click on it. The operator details page will be displayed. Click on Argo CD in the top panel. You will see a default ArgoCD instance deployed in the openshift-gitops namespace.



2. Update the Repo-Server ServiceAccount

This default ArgoCD instance uses the ServiceAccount (SA) named default for the repo-server pod. We are going to switch the default SA with a custom one for improved security.

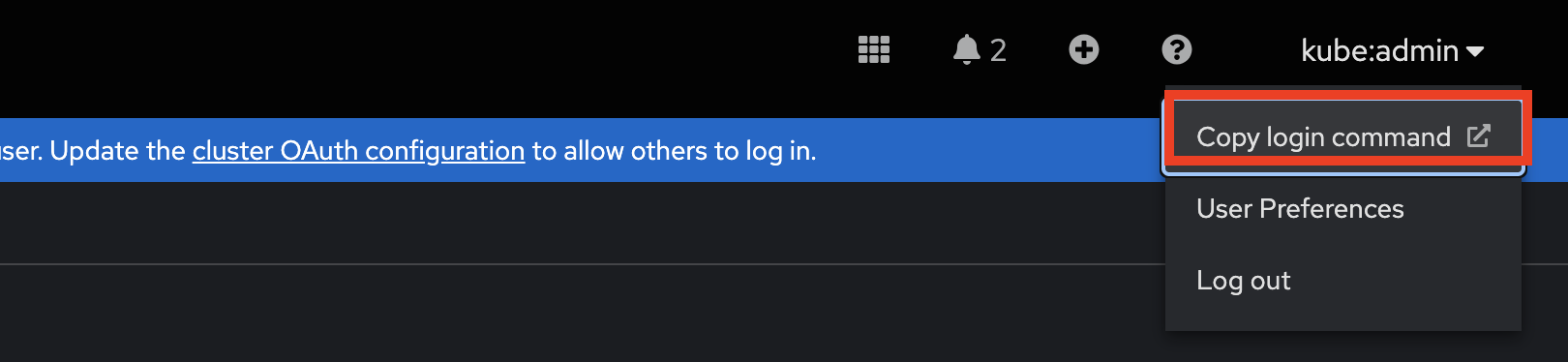

First, log in to Openshift using the oc client. You can retrieve the login command from the OpenShift console. Click on Copy login command, then click on Display Token. Copy the Log in with this token command, and paste in your terminal.

Next, create the custom service account

Patch the ArgoCD CRD to swap the repo server’s ServiceAccount

3. Establish Federated Trust

Set Environment Variables

Get OIDC Issuer URL (Tenant A)

Login to Tenant A and retrieve the identity provider URL:

Create Managed Identity (Tenant B)

Login to Tenant B to create the identity that ADO will recognize:

Create the User-assigned Managed Identity (UAMI)

Get the Client ID for later steps

Establish Federated Credential

This links the ARO ServiceAccount to the Identity in Tenant B.

4. Add your User-Assigned Managed Identity (UAMI) as an entity in ADO

Managed Identities are treated as Users in ADO. You must add the identity to the ADO organization in Tenant B.

1. Log into your Azure DevOps Organization.

2. Click Organization Settings at the bottom-left corner.

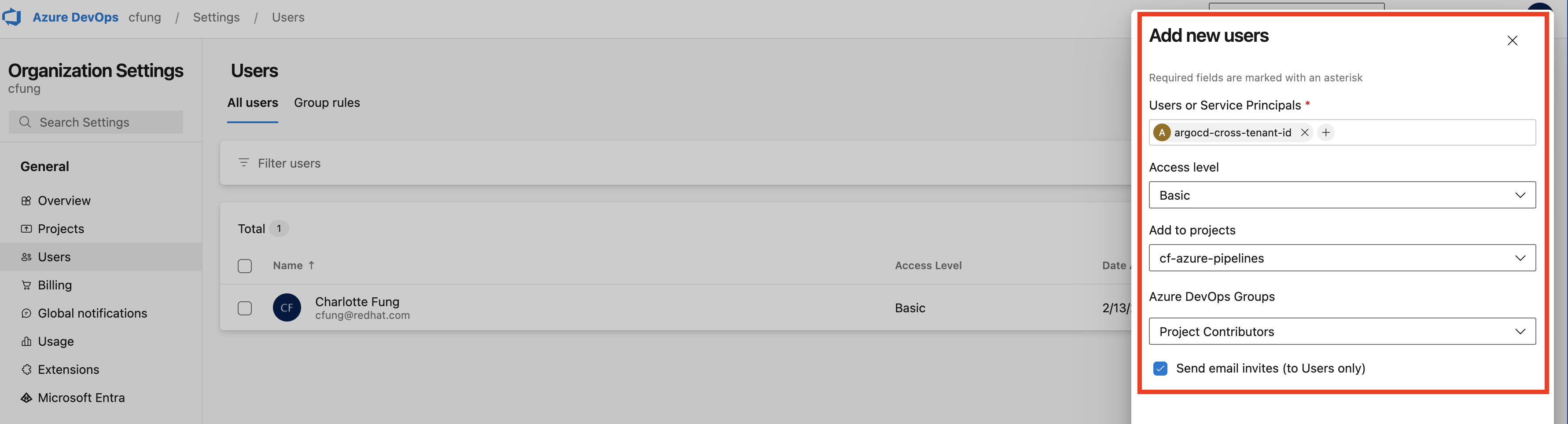

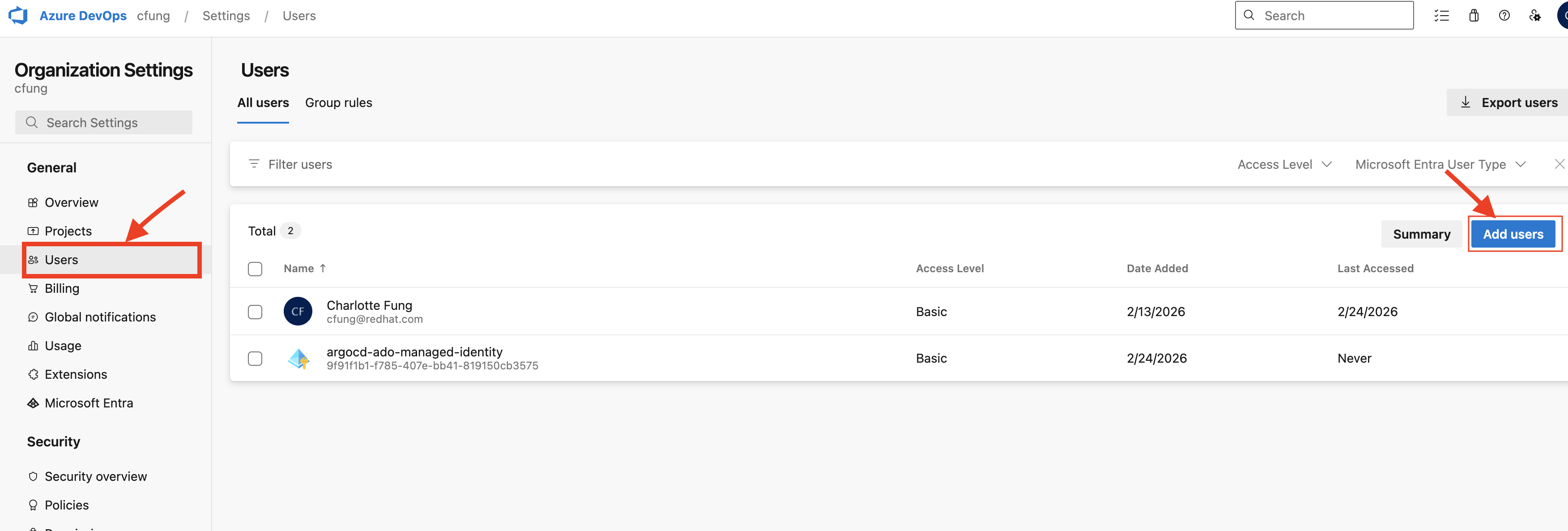

3. Select Users under the General Section and click Add users



4. Fill in the following



   Users: Start typing the name of your UAMI (eg argocd-cross-tenant-id). A drop-down should appear, select the right Managed Identity

   Access level: Select Basic

   Add to projects: Select the project you want this Managed Identity to have access to.

   Azure DevOps Groups: Select Project Contributors

   Click Add at the bottom of the page to add the user to your organisation.

5. Configure ArgoCD in ARO to authenticate with ADO

Switch back to Tenant A

We need to tell the repo-server pod which identity to assume by annotating its Service Account.

Patch the ArgoCD Deployment by adding the Workload Identity label to trigger the injection of the Azure token:

6. Deploy a Sample Application using ArgoCD

The sample application I used in this demo can be found here BGD-App . You’ll have to import the repository to your ADO project in order to use it for this demo. Follow the Microsoft documentation to Import a Git repository to a project

Assign necessary rights to the ArgoCD-Application-Controller ServiceAccount.

The Application Controller manages the live state of your cluster; therefore, it requires specific RBAC permissions to synchronize resources. In this guide, we will assign cluster-admin privileges for simplicity, though these permissions can be scoped down to individual projects for stricter security.

Retrieve ArgoCD credentials for UI login

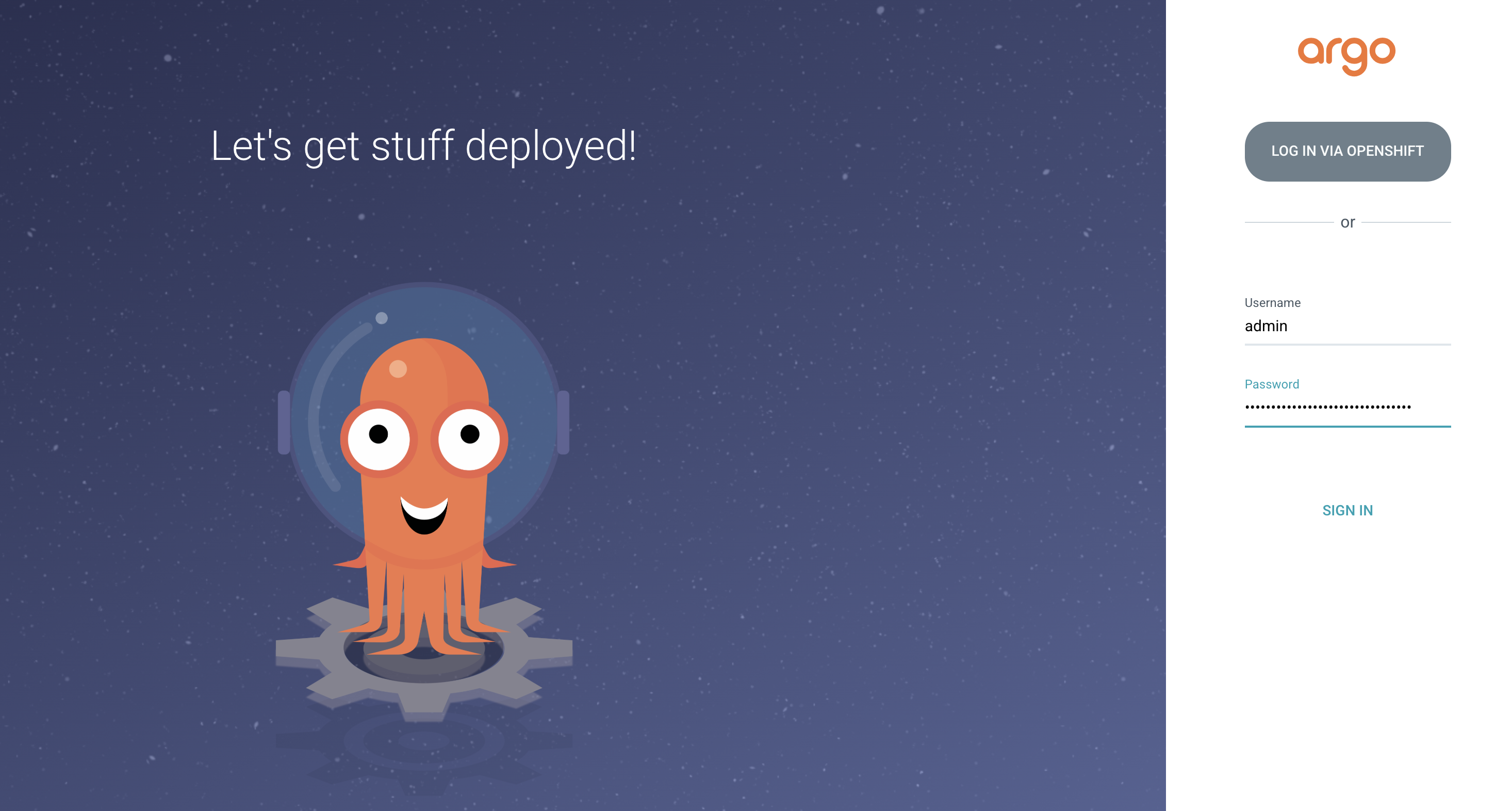

Use the console URL to access your ArgoCD instance on a web browser. Use admin as username and enter the password you retrieved in the previous step

Connect your ADO repo in ArgoCD

1. Click the Settings icon (the gear icon) in the left-hand sidebar

2. Select Repositories from the menu

3. Click the + CONNECT REPO button at the top of the page.

4. A sliding panel will appear. Choose your Connection Method: HTTPS

5. Type: git

6. Project: default

7. Repository URL: Your ADO repo URL

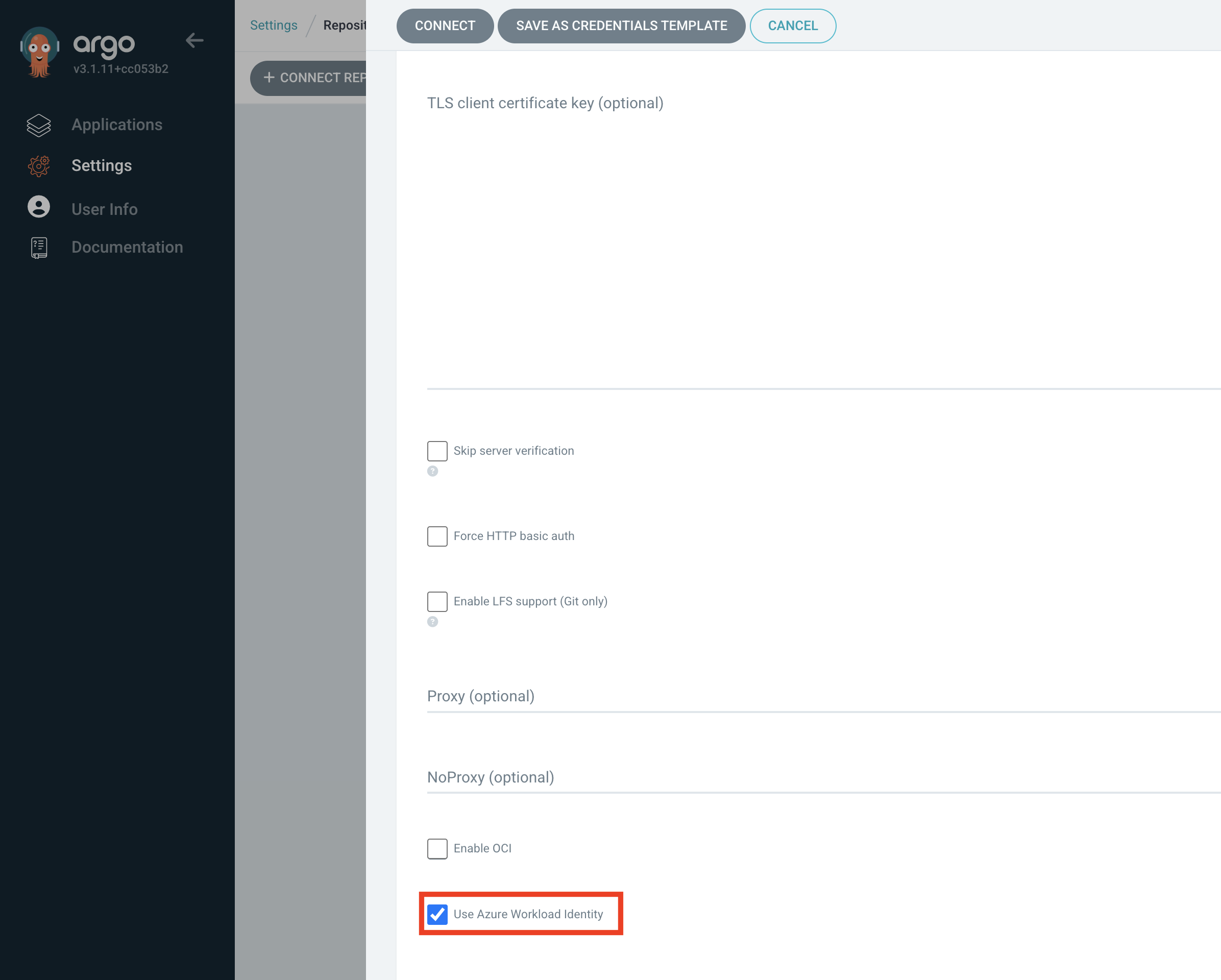

8. Scroll to the bottom of the page and Select Use Azure Workload Identity.

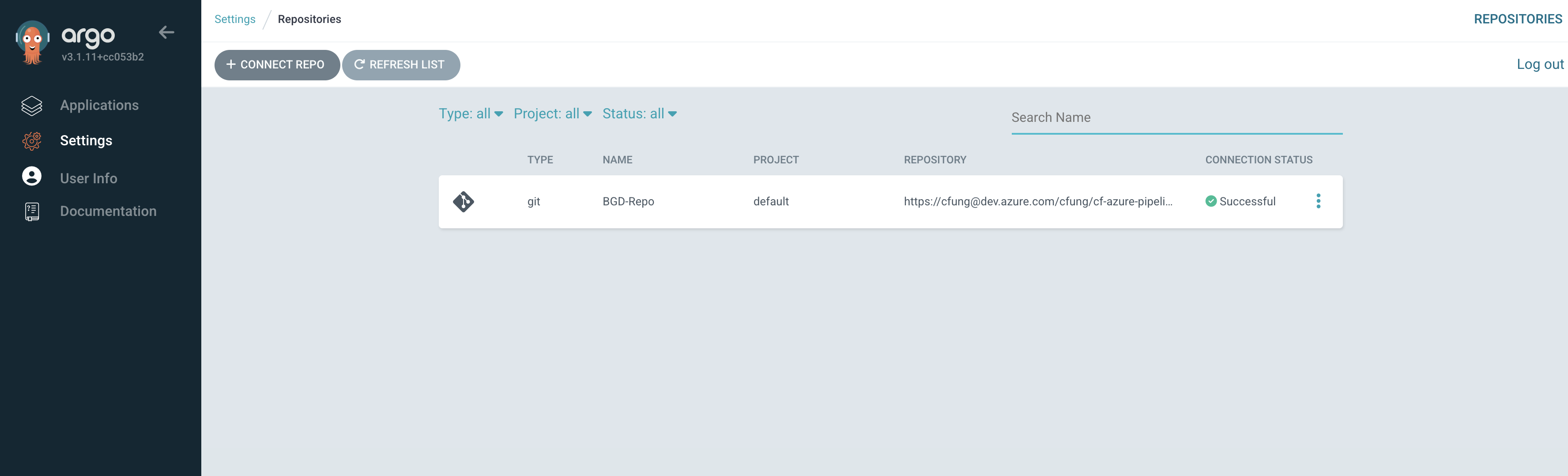

9. Click Connect at the top of the page. Check the Connection Status column in the repository list, it should show a green checkmark and say Successful.



Deploy your Application

1. Click the Applications tab in the left menu panel, and then click om + New App button in the top left corner

2. Fill out the app creation wizard as below

   Application Name: bgd-app (replace with your app name)

   Project: select default.

   Sync Policy: Automatic and select Enable Auto-Sync (ArgoCD will automatically sync the application when changes are detected)

   Repository URL: Paste your ADO repo URL

   Revision: Set to HEAD, main, or a specific brnach

   Path: apps/bgd/overlays/bgd (replace with your folder path inside the repo where the manifests are located)

   Destination Cluster: https://kubernetes.default.svc .

   Namespace: Enter the target namespace (if deploying to an existing namespace or leave empty if your manifests include namespace creation)

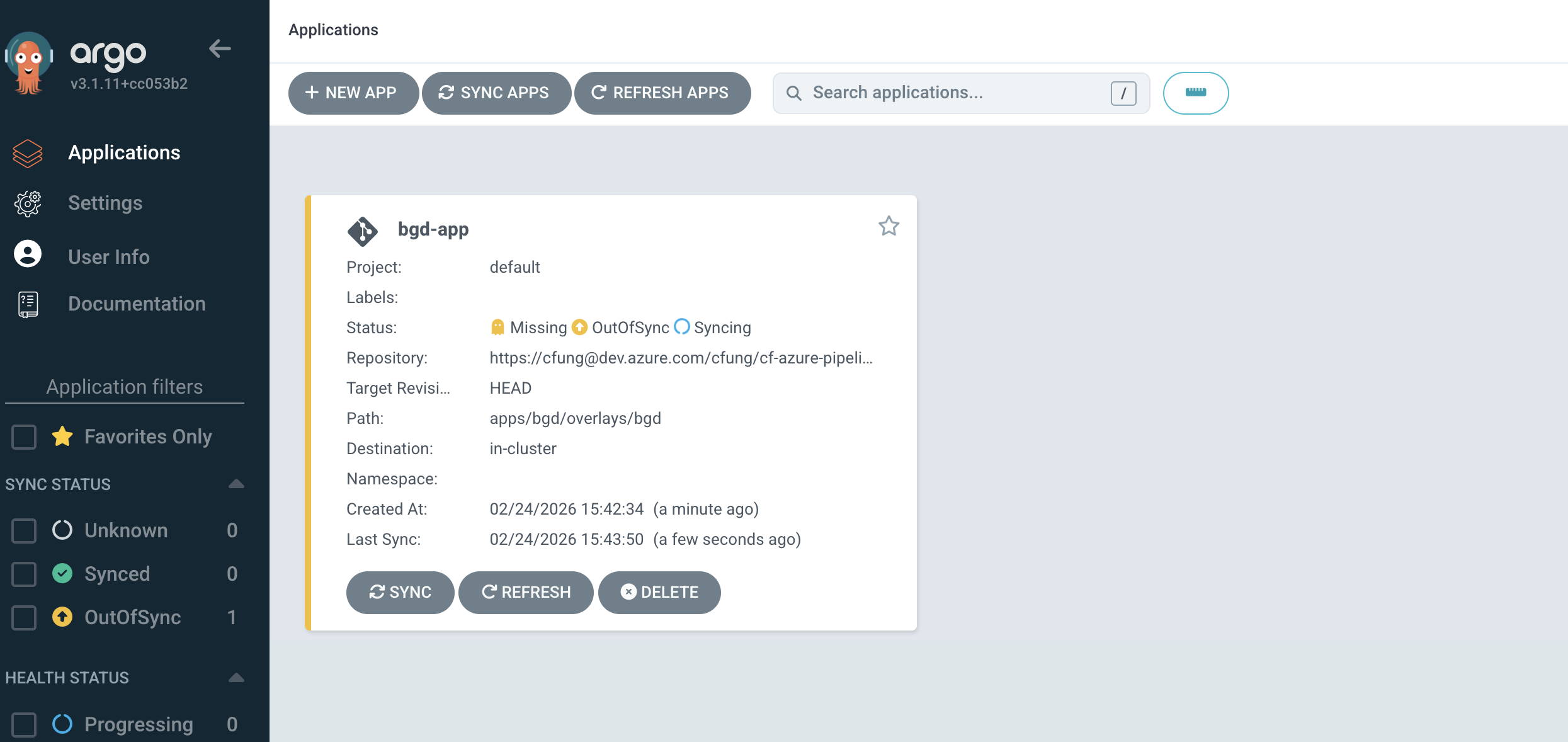

3. Click Create at the top of the panel. This will take you to a view similar to below

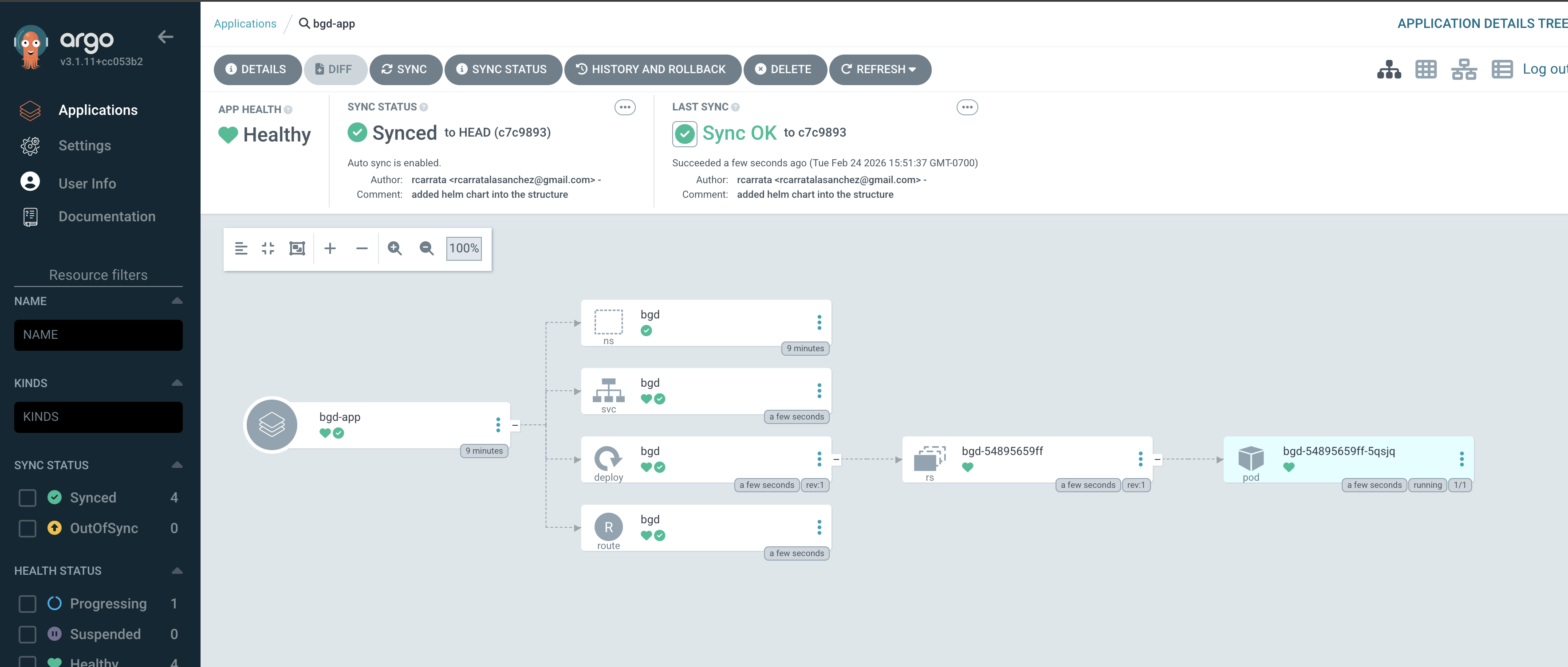

4. Click in the App box itself to see the detailed deployment. It should bring up this view



[NOTE] The deployment may initially show OutOfSync as the resorurces get created in your cluster, but should be synced eventually after a few minutes

Verify Deployment

In your terminal, check all resources created in the bgd namespace

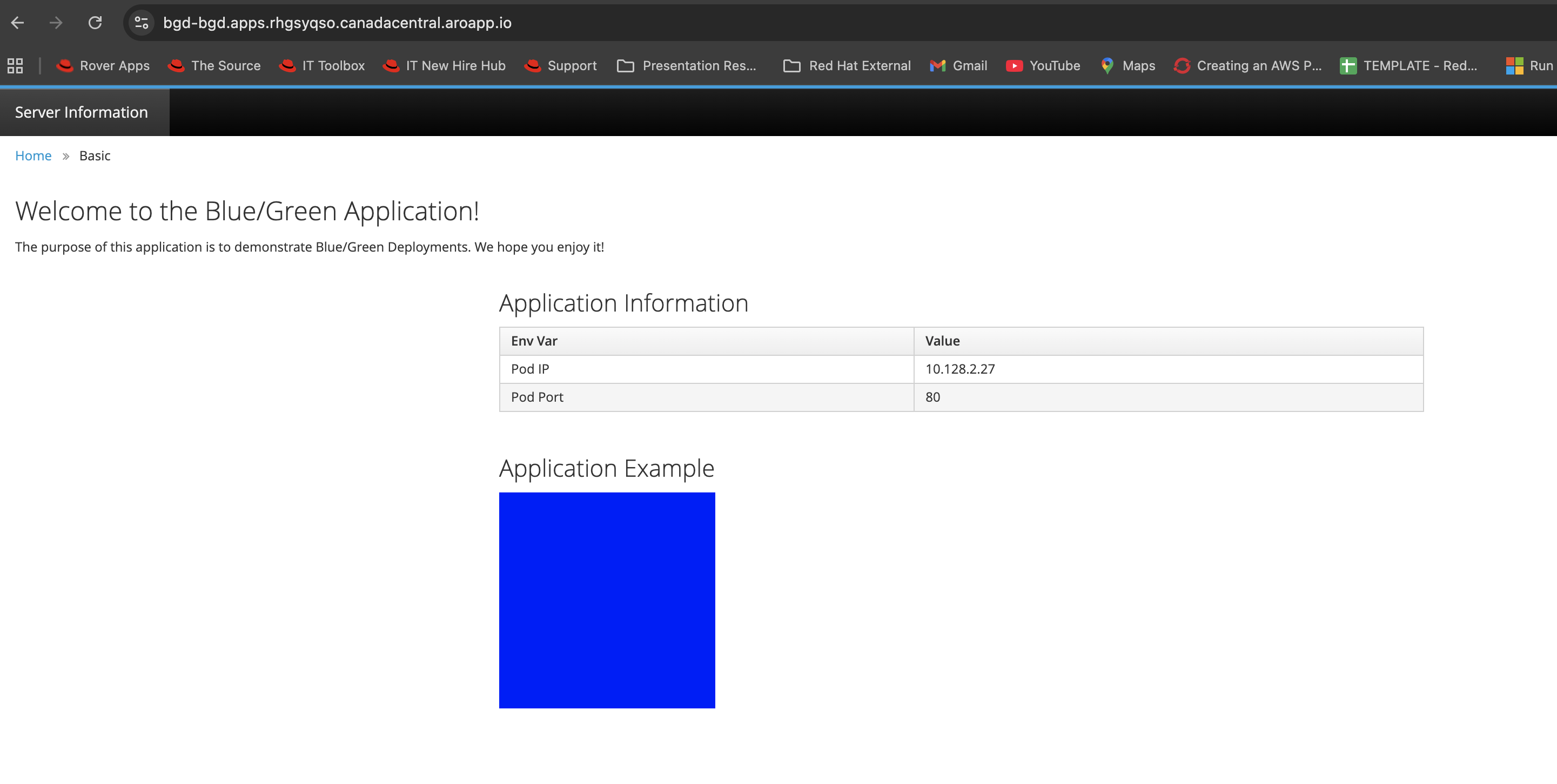

Copy the host address and paste in a browser to access your application.
